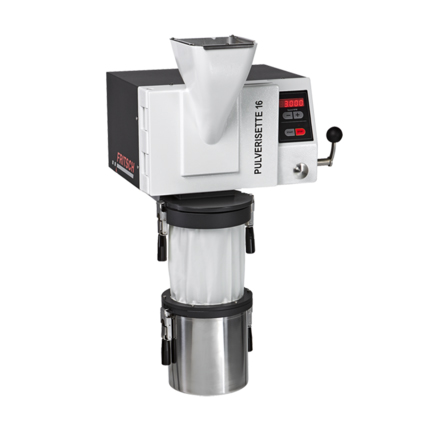

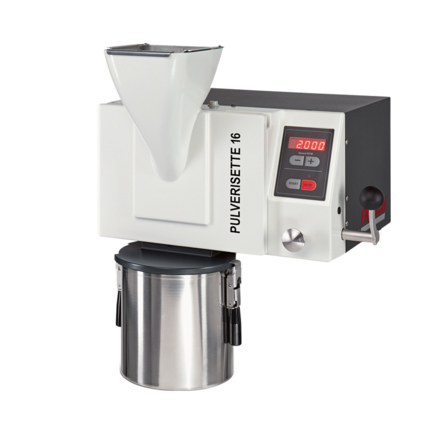

Cross Beater Mill – PULVERISETTE 16

The fast mill for all tasks

With a freely adjustable rotor speed of 2,000 – 4,000 rpm, the FRITSCH Cross Beater Mill PULVERISETTE 16 is the ideal universal mill for fast and gentle pre-crushing and fine-grinding of medium-hard, brittle materials up to a Mohs hardness of 6 in laboratories, pilot plants, and industry.
Comminution can take place batchwise or continuously. The maximum feed size for bulk solids is up to 25 mm. For batchwise operation, a 5-litre collecting vessel with a filter hose is delivered as standard. A 26 litre collecting vessel with a filter hose is also available for larger quantities. The final fineness depends on the selection of the bottom sieve and the breaking properties of the respective material. A final fineness of < 100 μm can often be achieved after the first step due to the powerful drive and a rotor speed of up to 4,000 rpm.
The PULVERISETTE 16 offers the highest operational safety: if the quick-clamping lock is opened unintentionally, a safety switch activates the motor brake so that the rotor comes to a stop.

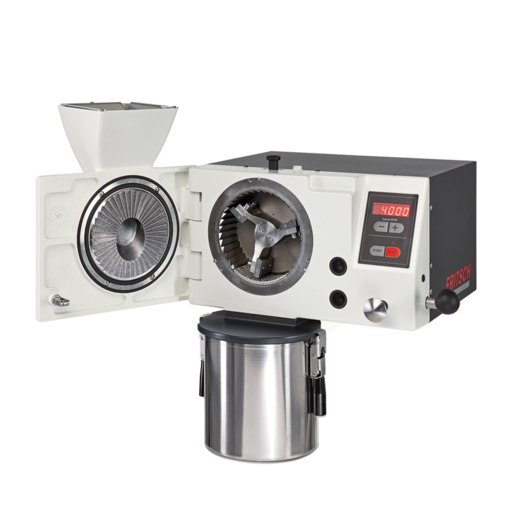

• Grinding insert, cross beater, and impact plates made of stainless steel
• Fast and gentle pre-crushing and fine comminution
• Fast work with a high throughput of up to 80 l/h
• Batch or continuous operation
